JL Audio C3-650 Evolution C3 Series 6.5" 75W RMS (150W Peak Power Handling) 4 Ohms, Convertible Component Car Speaker System with Silk Dome Tweeters
We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
- • (2) C3-650cw Woofers
- • (2) C3-100ct Tweeters
- • (2) C3-650-XO Crossovers
- • (2) Woofer grilles
- • (2) Flush mount tweeter housings
- • (2) Surface mount tweeter housings
- • (2) Coaxial mount tweeter fixtures
- • (2) Metal spring clips for tweeter fixtures
- • (2) M4x30mm Pan-head machine screws
- • (2) Crimp-on 0.187" Male quick slides
- • (2) Crimp-on 0.110" Male quick slides
- • (2) Crimp-on 0.25" Female quick slides
- • (2) Crimp-on 0.187" Female quick slides
- • (4) Crimp-on 0.110" Female quick slides
- • (12) Crimp-on spade connectors
- • (4) 1" Flat head self-tapping screws
- • (12) 1-1/8" Pan head self-tapping screws
- • (8) Speed clips
- • Woofer cutout template
- • Owner's Manual
Why Choose JL Audio C3-650 Component System?

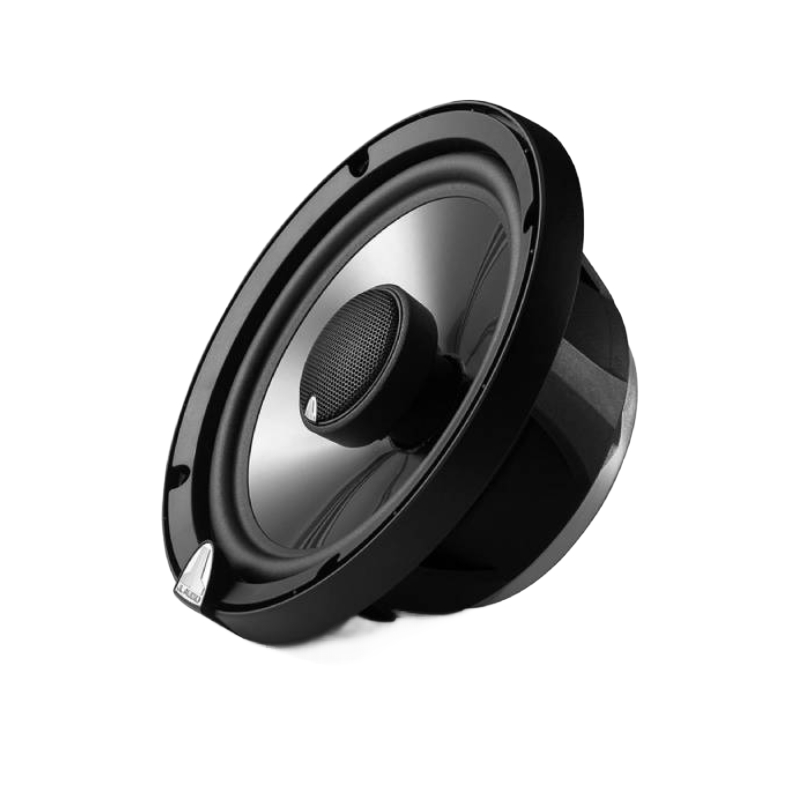

JL Audio C3-650 Evolution C3 Series 6.5-Inch Component Speakers
Upgrade your factory audio with the JL Audio C3-650 Evolution C3 Series 6.5-inch Component Speaker System, designed to deliver premium sound quality with detailed vocals, accurate mids, smooth highs, and punchy mid-bass. Its flexible tweeter mounting options make it ideal for both factory replacements and custom car audio installations.

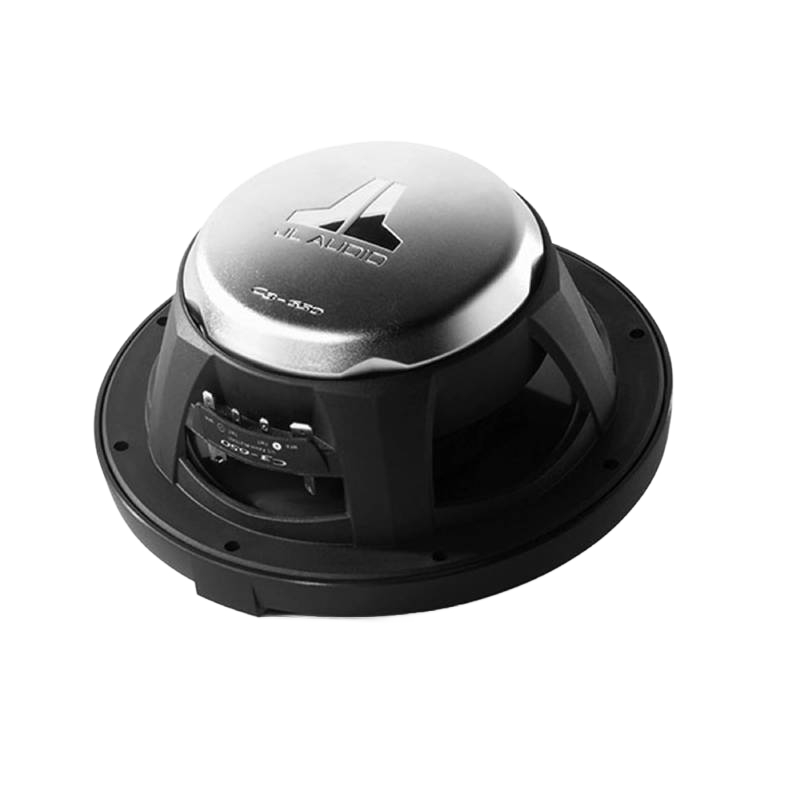

Polypropylene Woofers with Elevated Frame Cooling
The JL Audio C3-650 features mineral-filled polypropylene woofers with durable rubber surrounds for accurate mid-bass and long-lasting performance. JL Audio's Elevated Frame Cooling (EFC™) technology improves airflow around the voice coil, enhancing power handling and reducing heat during extended listening sessions.

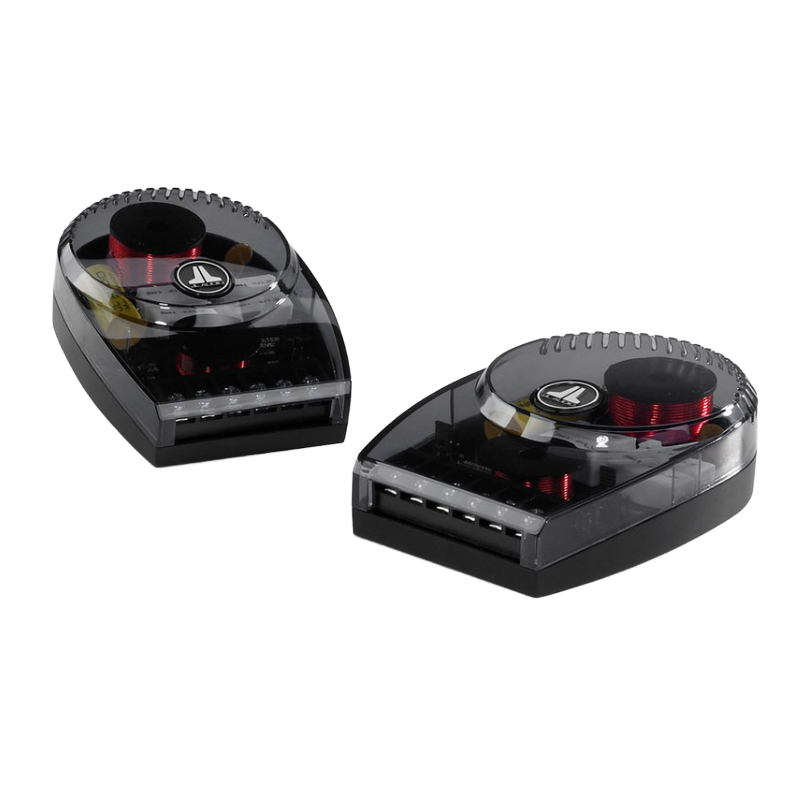

Silk Dome Tweeters with Premium Crossovers
Equipped with 1-inch silk dome tweeters, the JL Audio C3-650 delivers smooth, natural highs with excellent detail. The included premium crossover network and ferrofluid-cooled tweeters ensure balanced sound, adjustable high-frequency output, and reliable performance at higher volume levels.
JL Audio C1-650 vs C1-650SE vs C2-650 vs C3-650 vs C6-650 | Which JL Audio Component Speaker Is Best?
| JL Audio 6.5-Inch Component Speaker Comparison |
JL Audio C1-650
6.5" 2-Way Component Speaker System
BEST BUDGET UPGRADE
- • 50 Watts RMS
- • Aluminum Dome Tweeters
- • Inline Crossovers
- • Bright & Detailed Sound
- • Excellent Efficiency
- • Great on Factory Radios
- • Easy Installation
- • Most Affordable Component Set
|
JL Audio C1-650SE
6.5" 2-Way Component Speaker System
BEST FACTORY UPGRADE
- • 50 Watts RMS
- • Silk Dome Tweeters
- • Inline Crossovers
- • Smooth & Balanced Sound
- • Better Vocal Reproduction
- • Less Listening Fatigue
- • Excellent OEM Replacement
- • Easy Installation
|
JL Audio C2-650
6.5" 2-Way Component Speaker System
BEST OVERALL VALUE
- • 60 Watts RMS
- • Silk Dome Tweeters
- • External Crossovers
- • Improved Soundstage & Imaging
- • Smooth & Refined Sound
- • Excellent with Amplifiers
- • Best Price-to-Performance Ratio
- • Popular Daily Driver Choice
|
JL Audio C3-650
6.5" Convertible Component Speaker System
BEST ENTHUSIAST CHOICE
- • 75 Watts RMS
- • Silk Dome Tweeters
- • Premium External Crossovers
- • Convertible 2-Way / 3-Way Design
- • Excellent Imaging & Soundstage
- • Greater Tuning Flexibility
- • Ideal for DSP Systems
- • Serious Sound Quality Upgrade
|
JL Audio C6-650
6.5" Premium Component Speaker System
BEST SOUND QUALITY
- • 100 Watts RMS
- • Premium Silk Dome Tweeters
- • Adjustable Crossovers
- • Audiophile-Grade Performance
- • Exceptional Detail & Realism
- • Outstanding Imaging & Separation
- • Excellent with High-End Amplifiers
- • JL Audio's Flagship Component System
|
JL Audio C3-650 Recommended Amplifiers | Best Amp Pairings for Maximum Clarity & Speaker Performance
JL Audio C3-650 Amplifier Matching Guide
Real-World Amplifier Recommendations Based on User Experiences, Installer Feedback & JL Audio Specifications
Amplifier Matching Overview
C3-650 Power Rating: 75W RMS Per Speaker
Speaker Type: 6.5" 3-Way Component Speaker System
Recommended Amp Range: 25W – 150W RMS Per Channel @ 4Ω
Ideal Power Target: 75W – 100W RMS Per Channel @ 4Ω
Goal: Maximum detail, tighter mid-bass, wider soundstage, and distortion-free performance at higher listening levels.
What Real Owners Commonly Report
• The C3-650 delivers dramatically better imaging and detail when powered by a dedicated amplifier rather than a head unit.
• Factory radios simply don't provide enough clean power to take advantage of the C3-650's premium crossover and drivers.
• Most experienced installers recommend 75W–100W RMS per channel for the ideal balance of performance and reliability.
• Supplying clean amplifier power produces tighter mid-bass, improved vocal clarity, and greater dynamic range without harshness.
Top Recommended Amplifiers for JL Audio C3-650
JL Audio RD400/4: The best overall match. Produces 75W RMS per channel with outstanding efficiency, low distortion, and excellent headroom for the C3-650's premium component design.
JL Audio JD400/4: Delivers 75W RMS per channel, making it an outstanding value while providing nearly perfect power matching and impressive sound quality.
Hertz HCP 4D: A reliable alternative offering approximately 75W RMS per channel with compact dimensions and clean Class D performance.
Amplifier Power Guide
Factory Radio Only: 15W – 25W RMS Per Channel
Basic Amplifier Upgrade: 50W – 75W RMS Per Channel
Ideal Match: 75W – 100W RMS Per Channel
Maximum Recommended: 150W RMS Per Channel (properly tuned)
Gain & Tuning Recommendations
Gain Setting: Set amplifier gains for approximately 75W RMS per speaker while avoiding clipping.
High-Pass Filter (HPF): 80Hz when using a dedicated subwoofer.
HPF Without Subwoofer: 60Hz–80Hz depending on listening volume and music style.
Bass Boost: Leave disabled for the cleanest, most accurate response.
EQ: Begin with a flat EQ and use the C3 crossover's tweeter and midrange adjustments before making EQ changes.
Recommended System Pairings
Factory Plus Upgrade: C3-650 + Factory Radio
Best Value System: C3-650 + JL Audio JD400/4
Balanced JL Audio System: C3-650 + JL Audio RD400/4 + JL Audio W3v3 Subwoofer
Premium Upgrade: C3-650 + JL Audio RD400/4 + JL Audio W6v3 Subwoofer
Why Amplify the JL Audio C3-650?
Cleaner Sound: Dedicated amplifier power minimizes distortion and reveals the C3-650's full potential.
Superior Imaging: Better instrument separation and a wider, more accurate soundstage.
Tighter Mid-Bass: Improved cone control delivers stronger, more precise bass response.
Higher Output: Play louder while maintaining excellent tonal balance and clarity.
Greater Dynamics: Extra amplifier headroom allows music to sound more effortless and realistic.
Pro Tip: Although the JL Audio C3-650 is rated for 75W RMS, many professional installers recommend pairing it with a clean amplifier producing between 75W and 100W RMS per channel. The JL Audio JD400/4 and RD400/4 provide excellent headroom, maximize speaker performance, and maintain long-term reliability when gains are properly adjusted.
Frequently Asked Questions (FAQ)
- • Do the JL Audio C3-650 speakers really need an amplifier? Yes. This is one of the most common questions from prospective buyers. While the C3-650 will produce sound from an aftermarket or factory head unit, owners consistently report that the speakers don't reveal their full clarity, soundstage, and mid-bass performance until they're powered by a dedicated amplifier delivering around 75–100W RMS per channel.
- • Why doesn't my JL Audio C3-650 produce enough mid-bass? Most real-world discussions point to installation rather than the speakers themselves. Insufficient door sound deadening, improper high-pass filter settings, or underpowered factory radios are the most common reasons owners experience weak mid-bass. Proper amplification and treating the doors with sound deadening dramatically improve low-frequency performance.
- • What high-pass filter (HPF) should I use for the C3-650? Many owners experiment with crossover settings after installation. The most commonly recommended starting point is an 80Hz high-pass filter when using a subwoofer. Some users run between 75Hz and 100Hz depending on vehicle acoustics and listening volume, but proper gain adjustment is equally important for preventing distortion. :contentReference[oaicite:2]{index=2}
- • Why don't my JL Audio C3-650 speakers fit my vehicle? Fitment is one of the most frequently reported installation challenges. The C3-650 uses a relatively large woofer magnet and mounting depth, so some vehicles require spacer rings, adapter brackets, or minor trimming of the door panel. Always verify mounting depth and cutout dimensions before installation.
- • One speaker suddenly became quieter than the other. Is my speaker blown? Not necessarily. Several owners found that loose wiring inside the door, crossover connections, or damaged terminals caused one side to lose volume or clarity. Before replacing the speaker, inspect all wiring, crossover connections, and terminals, especially where the door wiring flexes.
- • Are the included crossovers really necessary? Yes. The C3-650 is engineered as a complete component system, and experienced owners strongly recommend using the supplied crossovers. They properly divide frequencies between the woofer, tweeter, and midrange while protecting each driver and producing the balanced sound the system was designed to deliver.
- • Are the JL Audio C3-650 speakers worth the money? Most owners praise the C3-650 for its smooth highs, accurate vocals, and excellent imaging when properly installed and amplified. However, many also emphasize that installation quality, proper tuning, and adequate amplifier power make a much bigger difference than simply replacing factory speakers.
- • What amplifier pairs best with the JL Audio C3-650? Professional installers and experienced users commonly recommend amplifiers that produce approximately 75W RMS per channel, such as the JL Audio JD400/4 and RD400/4. Clean amplifier power provides better dynamics, tighter bass, improved imaging, and significantly less distortion than relying on a head unit alone.
- Diameter : 6.5 Inch
- Sensitivity : 90 dB
- Frequency Response : 48-25000 Hz
- Peak Power Handling : 150 Watts
- Woofer Composition : Polypropylene
- Tweeter Composition : Silk Dome
- RMS Power Handling : 75 Watts
Features:
- Complete Component System: Includes two 6.5" woofers, 2 tweeters, two external crossovers, and two woofer grilles.
- Woofer Construction: Mica-filled polypropylene woofer with butyl rubber surround.
- Durable Frame: Glass-filled polymer frame with Elevated Frame Cooling.
- High-Quality Tweeter: 1" silk dome tweeter.
- Versatile Crossover: 2-way external crossover with adjustments for coaxial or separate tweeter placement and 4-position tweeter level.
- Flexible Mounting: Tweeter mounts for separate or coaxial installations included, with a phase plug provided when the tweeter is mounted separately.
- Power Handling: Handles up to 75 watts RMS (150 watts peak).
- Wide Frequency Response: 48-25,000 Hz.
- High Sensitivity: 90 dB.
- Compact Depth: 2-9/16".
- Grilles Included: Woofer grilles included for protection and aesthetics.
Specifications:
- Speaker Size: 6.5"
- Design: 2-way
- Tweeter Design: 1" Dome
- Impedance (Ohms): 4
- Tweeter Composition: Silk
- Woofer Composition: Mineral-filled poly
- Woofer Surround: Rubber
- Sensitivity (1W at 1 meter): 90
- Sensitivity at 2.83 volts: N/A
- Frequency Response: 48 - 25k Hz
- Minimum RMS Wattage: 25
- Maximum RMS Wattage: 75
- Peak Power Handling (Watts): 225
- Top-mount Depth (Inches): 2 9/16
- Bottom-mount Depth (Inches): 2 3/4
- Cutout Diameter or Length (inches): 5 9/16
- Mounting Height (Inches): 0.344
- UPC: 699440990226
- Weight: 9
- Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.
This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
-
These speakers sound great! With a good quality amp these will sound crystal clear and get very loud. I have the mtx td75.4 running them now and it sounds pretty good but not enough power. I've used the alpine pdx line too and they sounded even better. Definitely worth the cost!
-
worth every penny no regrets at all
-
amazing woofers and tweeters! crisp and clear full range performance. crossovers are built with high quality materials too. it's not overpowering but it sounds fantastic! JL Audio is the best!
